Commercial grade compact chilling dispensing solution. The G40 offers high performance for small to medium volume customers. Suits small bars, cafés, restaurants or even the increasingly popular travelling bars who want to ice up their flooded fonts.
Please note this is for the unit only, it does not come with attachments for the lines such as compression fittings, tubing for product and chilling lines, or polypropylene glycol.
Icemaster G40.1 Glycol/Icebank with Digital Control
Commercial grade compact chilling dispensing solution. The G40.1 offers high performance for small to medium volume customers. Suits to small bars, cafés, restaurants or even the increasingly popular travelling bars.
It is also not uncommon for some craft brewers to use this device to control the fermentation temperature of their vessels, providing they have a thick insulated jacket. We would not recommend this product for over 500L capacity vessels at normal room temperatures of 20°C.

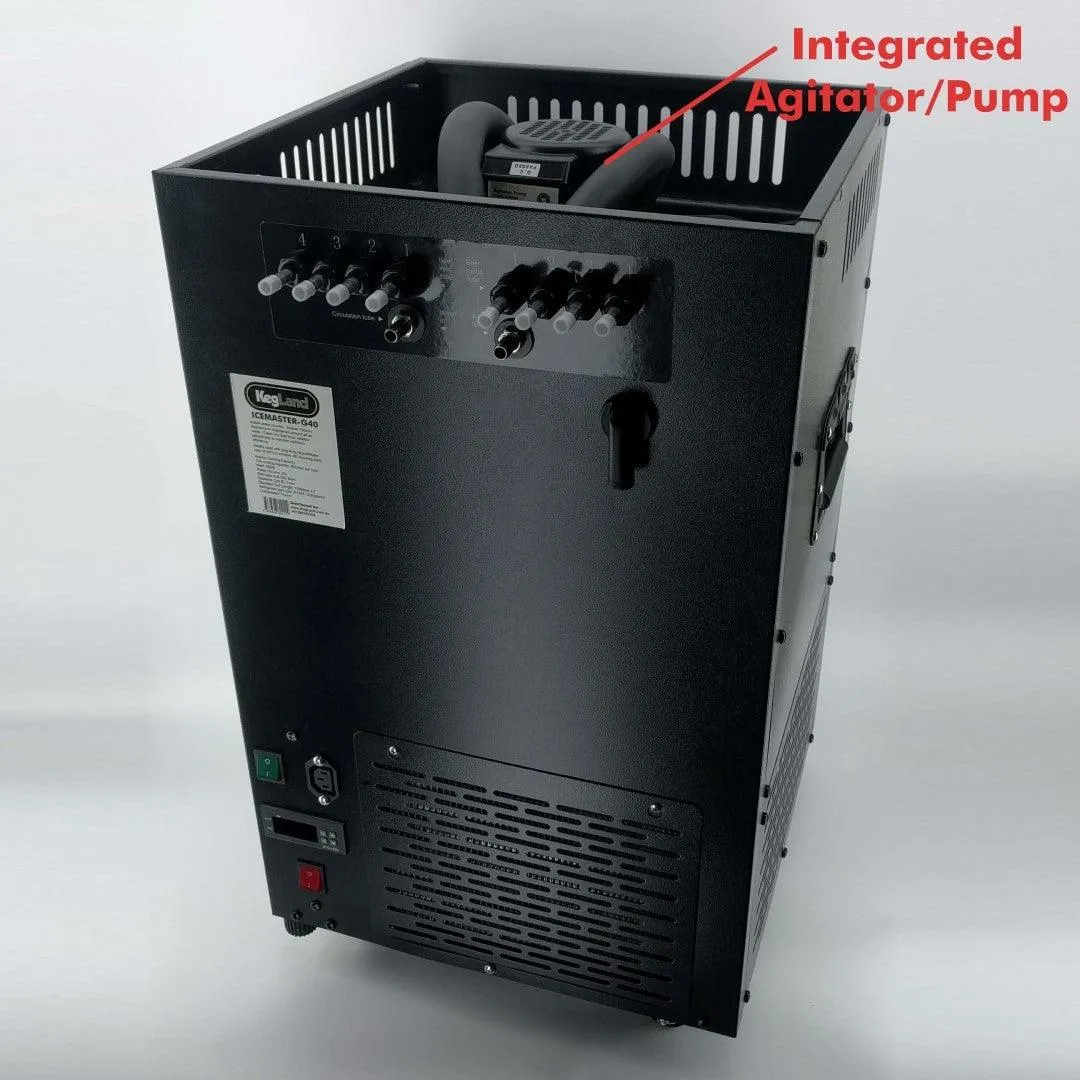

Comes with flooding impeller pump as standard, all enclosed inside the unit for efficiency and ease in transport. The G40 is also completely enclosed including the removable lid, this will aid in cooling performance due to less heat loss.
8mm 304 Stainless tubing ideal for compression fittings to 6mm barbs for product lines located at the side of the unit making them easier to install under commercial bar tops where height restriction is limited. The barbs are natively duotight compatible as well, for easy istallation with our 5mm x 8mm EVABarrierIdeally suited to be used for a glycol system, but can be used as an icebank.
We would like to make clear that with one pass through, through the G40.1 will only be able to drop the temperature of your product by 15C. Hence we highly reccomend if you are dispensing in an area that will be over 30C, that you use the G40.1 only for two product lines, and double them up through the unit. e.g. passes through the chiller twice in a loop.
Recommended Setup
The G40 inlet and outlet barbs are duotight compatible. We recommened or for this - many people find the elbows allow for easier installation. These also work well.
Our is generally the correct diameter for beer line.
For setting up a , you will also need some and .
Unless you are using this as an icebank, you will also need some .
Specifications
Pump: Impeller Pump Combination 35watts (6.5meter Head, approx 2000L/hour)
Product Lines: 4 Stainless Steel Product Lines (4 x 11meter Coils)
Product Line Size: 304 Stainless Steel Coils (8mm OD x 7mm ID - duotight compatible)
Cooling Output Line:
Icebank: 22kg Icebank (when using water)
Tank Capacity: 30L Water Capacity
Cooling Capacity: 520watt Cooling Capacity (0.7HP) (Rated at 22C)
Typical Product Cooling Capacity: 90Litres in the first hour, 35Litres each additional hour
Compressor Wattage: 155watt
Refrigerant: R600A
Dimensions: 410mm x 410mm x 660mm
Digital Temp Controller
We use a STC-1000 temp controller on this unit to control the temperature. If you would like to download the PDF instruction sheet for this controller please click on the link below:
